Power Pack
Backbone To Your Elevators
Power Packs
Custom built suitable for passenger, Goods, Hospitals,Handicap & Car parking elevators.
Perfectly calculated on computer software to match load, speed and power.
safe-incorporating national and international safely norms like EN 982 &EN 81-2.
Reliable-suits Indian climatic condition.
Flexible and easy to optimize smooothness, leveling,etc.
Basics Facilities available with standard design
On delay, smooth start, Smooth full speed, smooth slow speed, and smooth stop 'While traveling up and down.' Emergency manual down , Pressure control valve, Pressure gauge and ball valve.
Extra facility
Rope slack valve for 1:2 transmission, Hose rupture valve, Hydraulic lock , Ram lock valve, Extra down speed valve, Hand pump, Cooler, damper, Battery operated down valve,explosion proof coil and many more facility.
Power

Available in 220v A. C.-Single Phase /440v A.C.-Three Phase
Motor Option : Totally Enclosed Fan Cooled Motor-Indian Motor / Immersed Motor-Imported motor.

Noise level

relates with hydraulic pump and motor selection. Noisy, low noise, and very low noise options are available. In-house full-fledged testing Laboratory ensures best performance of Power Packs.

arrow TOP
Cylinders-Single Acting/Telescopic
Perfectly designed and manufactured for Individual project's
Suitable for light and heavy Load for passenger / Goods.
Range from ram diameter 40 to 200mm, stroke is available in 6 meter split
Suitable for Speed up to 1.000 meter/second.
Mounting : Top, bottom, center, side etc . as per transmission requirement
Suitable for Transmission 1:1 and 1:2
Our suggested cylinder will be safe for buckling at allowed load,
Constructed considering safety of 1:2.8.
Best quality is achieved by doing perfect metal selection,straightening, honing, grinding/ plating and using high quality sealing.
All other standard and custom built cylinders are available for every industry.

We Need Your Answer to Design Your Cylinder & Powerpack
Transmission of Cylinder : Direct= 1:1 / Indirect = 1:2
Type of elevator : Passenger / Goods.
Car Speed meter/second. OR power HP and available volts 220/440
Cabin weight (empty) and lifting load / number of Passenger
Actual car travel

Applications

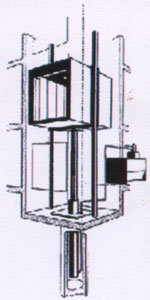

Cenral Piston
Cenral Piston
Indirect Piston Applicaton 2:1
Indirect Piston Applicaton 2:1

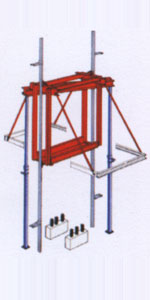

Dual Piston : Direct / Indirect
Dual Piston : Direct / Indirect

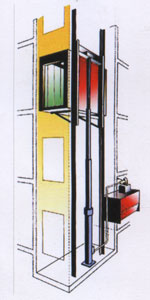

Direct Piston Application 1:1
Direct Piston Application 1:1
arrow TOP
Hydro-Pneumatic Techniks
Hydro-Pneumatic Techniks Has Been A Renowned Name In The Field Of Hydraulics, Executing Various Innovative Projects & Providing The Best Services In A Wide Range Of Industries.
Our Expertise Includes Supply Of
Power Packs And Cylinders In Various Capacities And Applications.
Presses.
Special Purpose Machinery.
Consultancy And Backup For Various Imported Hydraulic Systems.
Our List Of Clients includes Various Public Limited Companies And Mnc's

.With Years Of Experience In Intricate Hydraulics. Hydro-Pneumatic Techniks Now Also Providers Ready Made Solutions For The Elevator Industry - For Elevator Hydraulic Power Packs, Elevator Hydraulic Cylinders and Parking Solutions.

Our System Designed With International Safety Guidelines, For Load And Safety, using World Class Reliable And Age Proven Components, You Can Be Rest Assured For The Functioning of Our System For Your Elevators.

We are In Continuous Advancements For Our Product Quality, Management Systems And Trying to Be More Reliable to Our Suppliers And Customers.

As A Part Of Our Product Quality Improvement Program, We Have Established A Full Fledged Hydraulic Equipment Testing Laboratory To Test Various Hydraulic Equipments To FulFill Various National & International Standards For Safety ,Health And Environmental Requirements. Further To This Our Power Units Are Available With "CE" Marking

.Our Products Are Being Designed, Developed, Manufactured And Serviced Under The Control Established By Bureau Veritas Certification Approved Quality Management System, That Confirms With ISO 9001-2008 Approved By Bureau Veritas Certification.

We Had Gone Through Credit Worthiness Analysis With Crisil Limited to Make A Transparent Statement Regarding Our Strength, NSIC-Crisil Rating Available.

Hydro-Pneumatic Techniks Can Be The Reliable Backbone To Your Vertical Transportation.
